Description
DxLEIT is a Remote-control-station-Software for the handling of all the Dx-devices. It offers an interactive user interface in form of index cards, from which you can select different functions. The index card "Remote-control-station log book" indicates all arriving indications with date, time, name of station and information. The messages are listed chronologically. You can send commands to a station through a dialable dialog. A further index card shows you the state diagram of a dialed station. All signals of a station are shown graphically and numerically. If a station with data-logbook is interrogated, you can indicate the acquired logger data in a directory with the time of acquisition and the value. After that you can export the data at a click to an other file format. The count-data can be illustrated on index cards as well and transmitted in other formats for further use. A forward function of DxLEIT is the remote configuration and the remote readout of MBUS counters on Dx-stations. The transfer protocol of the MBUS counters can be defined and read out liberally, how far it is possible depends from the counters. The data can be converted at a click in a generally readable format. The forward use with EXCEL for example is possible. The DxLEIT software runs on PCs with WINDOWS 95/98/2000/NT and supports telephone dial modems an GSM-radio modems. The log book entries can be typed out on a printer.
Features:
- Receiving of plain-text messages
- request actual state of station
- request journal of station
- schematical illustration of station
- viewing multiple stations at once
- summary of all stations in one window
- sending and receiving of sms
- sending and receiving of data calls
- connection can be established by sms or p2p modem-connection
- query and display logged data
- query and display counter
- acoustic signal when receiving message
- configurable routine call
- Operation via non-switched network or GSM radio
- automatic request of station data, date can be freely chosen
- automatic saving of protocoll and logging data in file
- printing of protocoll data
- Data export to EXCEL / other common formats
- Runs on Windows 95/98/2000/NT
Transmission Types
| transmission type | SMS | DATA |
|---|---|---|
| conventional modem | - | X |
| GSM-radio-modem | X | X |
Dx-LEIT supports both transmission types.
Function Summary
| function | SMS | DATA |
|---|---|---|
| announce | X | X |
| command | X | X |
| state of station | (X) | X |
| configuration | (X) | X |
| query logger | X | |
| query counter | X |
Technical Specifications
Data tranfer
via SMS or point-to-point connection
Configuration / Programming

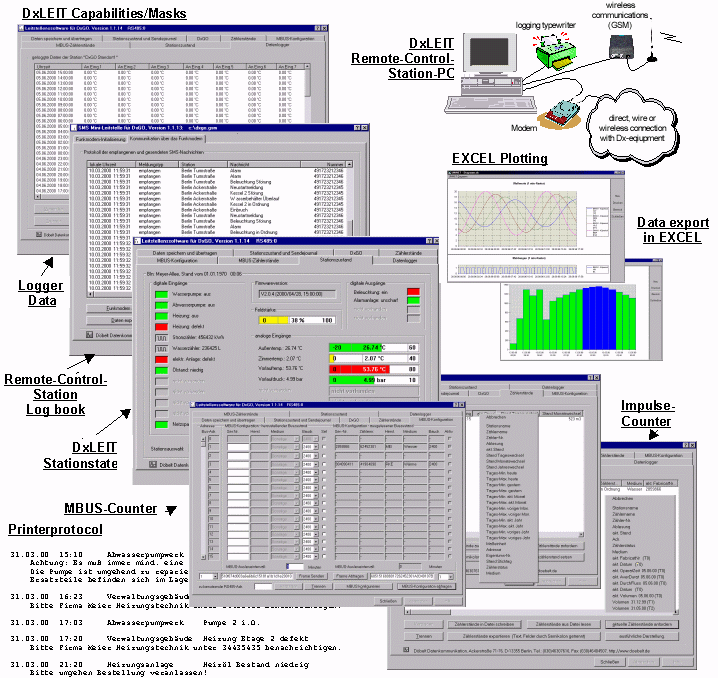

Visualization
index cards for the log of all events
index cards for logger (readout of) data output
index cards for state of a station
index cards for readout of pulse counter figures
index cards for readout of MBUS counting
index cards for MBUS counting configuration
Data Export
Communication
Supported OS
Number of stations
Logging
Miscellaneous
field strength detector
color changing by change of state
color changing by boundary value violation
readout of logger data
MBUS remote configuration
Scope of supply
Variants
Control-software for SMS and Data communication. Suitable for all Dx-Devices.
DxLEIT with GSM-modem
Transmission of messages and commands via SMS;
Transmission of log data via data connection.
DxLEIT with non-switched network modem
Transmission of all data, messages and commands via data connection.
Extras

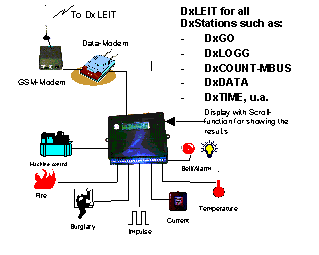

DxStations for DxLEIT
Measuring, controlling, counting, commanding, logging, monitoring
All actual values of a selected Station (Messages, Count-values, Measuring values and Commands) in a mask
DxLEIT Communication with Dx-Stations
Modem connection to Dx-Devices from the non-switched or mobile-radio network
