FLEX The radio-terminal
Point-to-Point-radio connection



Description

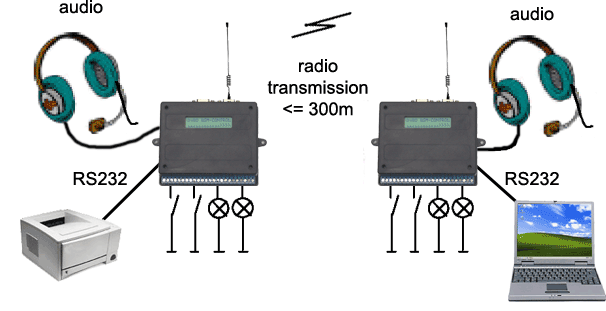

FLEX represents a wireless transmission system for signals, data and voice over distances up to 300 meters. The data exchange between FLEX Stations will be realisied by radio connections free of charge. A standard application is a bidirectional point to point transmission between two FLEX-Stations. Input signals from one station will be transmitted to the other station and given to the process as an output signal. A mixture between input and output signals on each device is possible.
Additional to the signal transmission there is a full duplex voice or data transmission facility.
With FLEX devices you can realise a distributed event-message and remote control system. The stations can be located in a radius of 300 meters. One station is used as a master station. This master station controls the communication between all distributed stations and is responsible for the data exchange. It is possible to connect together up to 16 radio stations with the same functionality in one radio network as a low cost application without cabeling and transmission costs.
Each FLEX STATE radio station supplies you with up to 16 digital inputs as potential free inputs and up to 16 digital outputs as open-collector outputs or relay outputs as an option. Signals up to a frequency of 10 Hz will be recognised and transmitted. Configuration work for the FLEX-STATE radio station is usaly not necessary. If it is necessary you can use an optional comfortable PC software for configuration work.

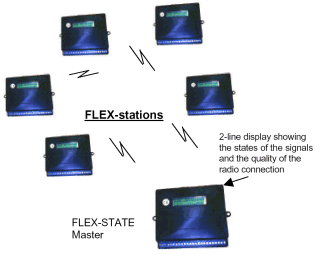

On a display you can see all states of the digital in- and outputs and the quality of the radio signal.
Futhermore the FLEX-VOICE Station is able to establish a full duplex voice channel between two points without any interaction. The FLEX-DATA delivers a full duplex data channel with 19200 bd.

Applications

  • Point-to-multipoint(P2MP) connections via radio
  • Up to 16 stations in a network with FLEX-NET
  • Crossing offical areas (Streets, rivers, obstacles,..)
  • Transmission of remote signals to a central point
  • Transmission of counting pulses from power stations to a central counting station, exact in frequency and value
  • Transmission of signals from objects on rivers or waters to the mainland
  • Establishing of a full-duplex voice channel for i.e. moving vehicles, without any handling
  • Full-duplex data-transmission with 19.200 bd for i.e. data aquisition from remote systems and machines.

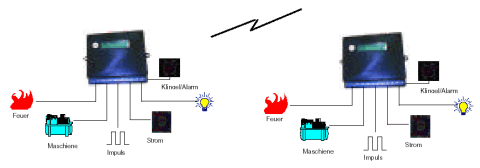

FLEX-STATE - two stations connected with complementary in- and outputs.

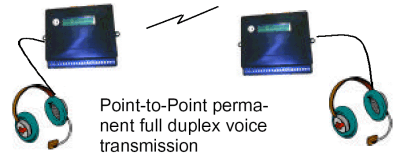

FLEX AUDIO DUPLEX

Features

  • Free of charge radio signal transmission
  • Signal transmission via radio
  • Distance up to 300m in free area (DECT-technology)
  • Uni- and bidirectional transmission
  • RS232 data transmission up to 19.200 bd
  • Voice transmission, full-duplex
  • Transmission of digital signals
  • Up to 16 in- and 16-outputs / station
  • þ Number of In- and outputs selectable
  • Exact frequency transmission (typ. 10Hz, max. 100Hz)
  • digital inputs for potential free Contacts
  • digital outputs as open collector- or relay-outputs (option)

Technical data

  • Data transmission:
    • via radio (DECT) over a distance up to 300
    • greater distances with repeater possible
    • option: 70cm (ISM-Band) up to some km
  • Configuration:
    • Systems are preconfigured, own system configuration is possible
  • Display:
    • 2-line LCD-Display (16 character/line)
    • For showing all states of the system
  • Terminals/Sigals per Staion:
    • 16 digital inputs (pot. free contact)
    • 16 digital outputs as open-collector or as relay output, number variable
    • RS232-Interface for data transmission, max. transmission rate 19.200 Bd
  • Audio:
    • Audio-interface (Mic/Speaker) for online full duplex voice transmission
  • Radio network:
    • up to 8/16 stations in a distance of 300m
    • Point-to-point and Point-to-multipoint
  • Security:
    • end-to-end confirmation, battery backup
    • Error-counter, field strength indicator
    • central und decentral alarm terminal
  • Antenna:
    • integrated DECT Antenna
    • external antenna (optional)
  • Power-supply:
    • 8-15V=, 200mA, (8..35V=/ 60V=/ Solar)
    • Integrated battery-charge circuit, -buffering
    • Power loss and power return message
  • Messurements:
    • L: 130mm, B: 110mm, H: 40mm
  • cases:
    • For wall- or mounting rail montage
    • IP67 wall case (optional)
    • Measurement: 300*180*120mm3
  • Versions:
    • FLEX STATE 16I - single system with 16 digital Inputs
    • FLEX STATE 8I/8O - single system with 8 in-and 8 otputs
    • FLEX STATE 12I/4OR - single system with 12 inputs and 4 relay-outputs
