DxEVENT characteristics
- Compact measures - and notifying-constuction for the supervision of measures - and counting-values as well as conditions (pressure, flow, levels, contacts) for areas without power supply.
- Been suitable to the mounting into street-caps, shafts and canals (plastic-cap).
- Measure - and transfer-interval freely selectable from minutes until 9999 hours
- Transfer of for example minute-values daily, monthly or after reaches a certain number of measurements
- Automatic transfer that grasped and scaled values cyclically as singles-values or as protocol (ATV) on VOICE/PAGER/MOBILE/FAX/EMAIL/PC/INTERNET
- Transfer per GSM by means of SMS and data-connection
- Reception, evaluation and preparation of the data with our control stations DxLEIT, UNINET or with DxNET (www.dxgo.net), the control station in the INTRA-/INTERNET
- Measurement to selected times, storage of the data in the FLASH, local readout possible
- State-/event supervision, for example forbidden opening of doors or canal-covers
- Up to 8 analogous inputs 0/4 ..20mAs or 0 ..1/10VS and up to 12 digital inputs
- LED-display or as option 2-rowed alphanumeric display
- Casing-designs: rectangular; round, compatible for DN10; in plastic street cap, STVO admitted, protection-type: IP40 until IP67
- Operating with battery: up to several years, charging rate in the Sleep-Mode,: 2µA
- Environmental temperature: -20°..+60°C
- measures i.e.: 100*70*20 mm³
|
Description
DxEVENT is an event reporter with battery-supply and GSM/GPRS-modem. the appliance is
switched on over an external contact when opening and/or closing. Afterwards, DxEVENT
sends the deposited messages to the pre-determined telephone numbers. SMS can be
transmitted, also with rear telephone call, email -, FAX - or VOICE - news, just as data
send at the internet control station DxNET.
After sending the messages, the appliance switches off itself again automatically. Can be
connected up to eight contacts, that induce sending out of messages when opening or
closing. With the battery can be enforced up to 5000 transfers. The battery-lifespan
depends from the temperature and the distribution of the transmission events. In the
average, the battery-lifespan amounts to 3-8 years. Additionally, DxEVENT can be equipped
with a clock, that it allows to put down for example cyclic routine-messages to oversee
about the function. The clock can still be used for it to switch on DxEVENT after demand
in order to manage consequently an attainability from outside. This way cell-information
can be transferred for example and position-regulations are enforced with mobile
appliances in certain time-distances so.
Applications:
supervision of buildings without bus bar and fixed network connection (container,
fountain, shafts, canals, doors, ...), connection of movemant sensors or fire detectos and
many more.

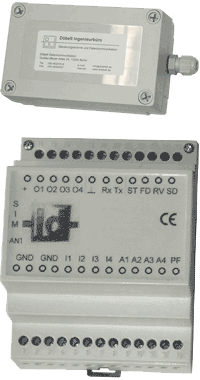

Design/Deviations:
DxEVENT/DxLIFE can de delivred in boxes of IP20 up to IP67. The smallest deviations rest
with approx. 100x70x20 mm³.
|
