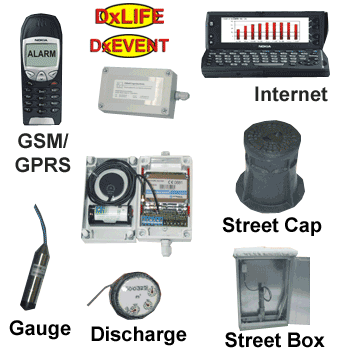

DxLIFE - Online Data Logging
Data Logging round the clock with battery and radio
|
|
DxLIFE Charakteristics
- Compact measures - and notifying-constuction for the supervision of measures - and counting-values as well as conditions (pressure, flow, levels, contacts) for areas without power supply.
- Been suitable to the mounting into street-caps, shafts and canals (plastic-cap).
- Measure - and transfer-interval freely selectable from minutes until 9999 hours
- Transfer of for example minute-values daily, monthly or after reaches a certain number of measurements
- Automatic transfer that grasped and scaled values cyclically as singles-values or as protocol (ATV) on VOICE/PAGER/MOBILE/FAX/EMAIL/PC/INTERNET
- Transfer per GSM by means of SMS and data-connection
- Reception, evaluation and preparation of the data with our control stations DxLEIT, UNINET or with DxNET (www.dxgo.net), the control station in the INTRA-/INTERNET
- Measurement to selected times, storage of the data in the FLASH, local readout possible
- State-/event supervision, for example forbidden opening of doors or canal-covers
- Up to 8 analogous inputs 0/4 ..20mAs or 0 ..1/10VS and up to 12 digital inputs
- LED-display or as option 2-rowed alphanumeric display
- Casing-designs: rectangular; round, compatible for DN10; in plastic street cap, STVO admitted, protection-type: IP40 until IP67
- Operating with battery: up to several years, charging rate in the Sleep-Mode,: 2µA
- Environmental temperature: -20°..+60°C
- measures i.e.: 100*70*20 mm³
|
|
back on top |
|
Description
The DxLIFE is a battery supplied data-logger with GSM-transmission. DxLIFE offers different
accesses for contacts, (counting -) impulses and measurement signals, for
example 0 ..1V/10VS; 0/4 ..20mAs. The power supply of the sensors works via DxLIFE, an
additional power supply is not necessary. In order to optimize the energy needs, the
internal clock (DCF77) allows the configuration of pre-determined scan dates and/or
measure intervals. DxLIFE loggs the data the connected givers and sensors, stores and
assesses them and solves alarm-
news over GSM per SMS/FAX / EMAIL/VOICE, at a control station or at DxNET, the internet
control station. The collected data are transferred in the end of a measuring period with
a GSM/GPRS-connection at a control station and are stored there in a data base. The
evaluation and visualisation of the data also takes place there. Scan dates, signal
descriptions, transfer-intervals and much more are fixed with the configuration-software .
In order to admit changes or retrievals of distance, the appliance can be switched on to
certain times. With the standard-battery, temperatures or level-stands can be collected up
to five years hourly for example and transferred to a control station weekly. With
accordingly big energy, an on-line-transfer of the collected data is possible. A
particular DxLIFE implementation with a serial interface allows the connection and the
readout of the data from data-loggers and transferring via GSM/GPRS to pre-determined
times at a control station.
Applications:
Supervision of network-bad-points, piping-supervision, measurement of
groundwater-level-stands, temperature-supervision in containers, traffic counts and much
more
Design/Deviations:
DxEVENT/DxLIFE can de delivred in boxes of IP20 up to IP67. The smallest deviations rest
with approx. 100x70x20 mm³.
|
|
back on top |
DxLIFE - alternatives
|
|
DxLIFE-Box:
|

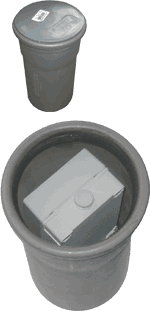

DxLIFE in a pipe:
|
DxLIFE in a street cap:
|
|
|
|
|
|
back on top |
DxLIFE - accessories
|
|
fill level gauger: |
flow rate counter: |
shaft aerial: |
|
|
|
supervision of fill levels in liquid tank constructions or the like.
|
supervision of flow rates in for example effluent pipelines.
|
for simple installation of aerial in shafts.
|
|
|
