Characteristcs
- GPS Locating with GSM Transmission of the Position to any Receiver
- Area Monitoring with Alerting at Limit Crossing
- Monitoring via Mobile Phone or Control Station Software
- Activating of the Positions Monitoring (time- or state dependant)
- Lower Power Consumption, Battery Operation or Solar Engergy Comsumption possible
- Arbitrary Call Destinations for the Message Transmission
- Digital and analog In- and Outputs for Monitoring and Controling of Systems
- Port for Sensors (Speed Indicator, Tank, Temperature, Water Quality. etc.)
- Port for Signalers for the automatical zum automatischen Transmission of predefined Messages
- Logging Function for Recording of Positio Data and Measured Values
- Transmission of the Position Data in an arbitrary Time Pattern
- Time Synchronization with a Control Station
- Operating Voltage Monitioring
- Remote Configuration
- Position and Information Display
- Comfortable Configuration Software
- Optional: DxGO-POS with GPS in an IP68 Box for Vehicles, Supply with 12V
- Optional: Central with Map Software
|
Description

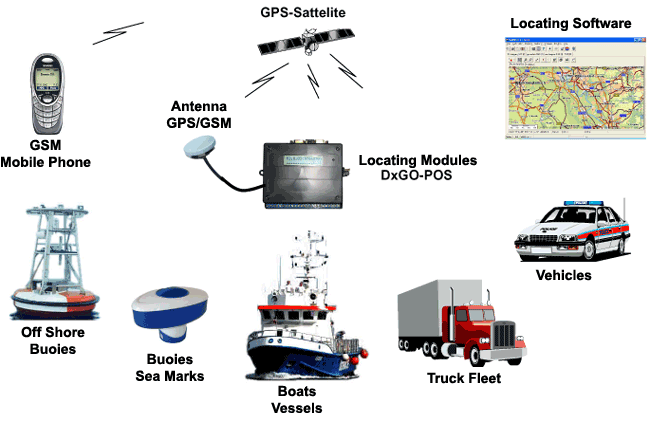

DxGO-POS combines the functions of the DxGO device with the functions of a GPS receiver and
therewith it makes the locating and monitoring of positions of mobile devices or system as well
as vehicles possible.
The Position Data is shown on the display of the device.
This data is transmitted to a predefined receiver e.g. in static time intervals or at the
occurance of an event.
Furthermore the position of the device may be queried at any time.
Additionally the device has analog and digital in- and outputs as well as a data logger for
remote monitoring and -controling of the systems.
Status Depentdant Position Monitoring
Via activating one of the inputs the device is able to store the current position and to
locate possible discrepancies.
If a discrepancy higher than a predinfed tolerance value is detected, it's possible to transmit
a message (e.g. sms, fax e-mail, pager, voice messgae) to a default receiver.
The position report is displayed in every automatically generated message caused by the DxGO-POS
device.
Time Dependant Position Monitoring
Using a week calendar activating dates may be defined.
Position data is only transmitted, if the activating point is active.
Periodic Transmission of the position
The periodic transmission of the position data is possible via a routine call.
Within static time intervals the current position is transmitted to the dialed receiver.
System Monitoring and -Controling
For the remote monitoring an -controling of the system digital and analog in- and outputs are
provided.
|
Position Accuracy and Display
The accuracy of the line item specification depends on the number of received satellites.
The more satellites are available the more precicely the position data is transmitted.
The display of the position data in time patterns of hours, minutes, seconds and hundredth
seconds. One minute is equivalent to one nautical mile (1NM = 1,852km), so that one second is
equivalent to approx. 30m. Resultant to that a display accuracy of 30cm is determined.
Before the display of the degrees of lattitute and longitude the direction of the compass is
shown. The accuracy of the GPS signal amounts approx. 10 to 15m.
Data Logger
Position data and measured values may be stored in a free configurable time pattern to an internal
data logger.
Visualization Software
Using the DxPOS Locating Software the position of the devices may be shown on your PC.
For Germany and nearly all european countries and countries of the world corresponding maps
are availible.
DxNET-POS
Using the internet control station DxNET positions of individual objects may be shown on the
internet. The user needs no software installed on his PC and all functions and applications
are accessible via the internet anyway.
Ports / Configuration
The configuration and the allowed position discrepancy is being adjusted via the DxCONFIG
software.
Applications
Monitoring of vehicles, boats, containers, construction machines, buoies, mobile systems, a.m.
|
