DxGO GSM-Control
Remote Control and Supervision




Description:

With DxGO you're able to send freely configurable text messages to GSM mobile phone with appearance of an event. It is also possible to transmit the message as a fax, email, voice message or to a pager, a PC (DxLEIT) or to the Internet Control Station DxNET (www.dxgo.net). The transmission takes place as a short data telegram (Short Message Service - SMS). Furthermore DxGO is capable of registering and transmitting analog measured data. Exceeding of preconfigured warn levels will be announced immediately to you, dependent on your configuration. By using the relay output, you're able to remote control up to four devices by SMS with your mobile phone, PC or via email. An integrated PLC allows you the programming of simple functions. The configuration of the DxGO can be done with a mobile phone or with the comfortable software DxCONFIG.

Functions

  • time synchronization via radio clock
  • messages by SMS, FAX, Voice, Email
  • event message queue, til 11 persons
  • sharp/unsharp configuration/signal
  • remote control and status request
  • analog data processing
  • counter value data processing
  • data supervision and logging
  • integrated simple PLC function
  • radio or ABX/PABX transmission
  • cyclic routine message
  • power fail detection
  • self test function
  • transmission logbook/event protocol
  • remote control software DxLEIT


back to top

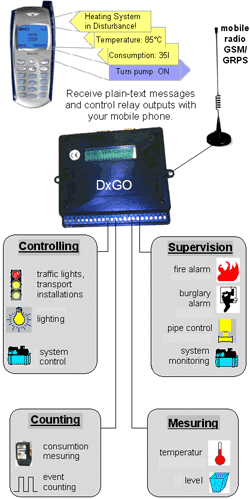

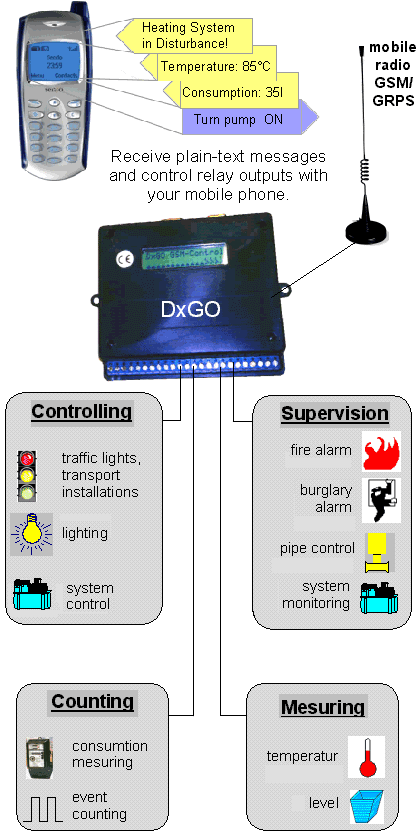

Applications

(i.e. supervision and controlling of buildings)



Further Applications

Supervision and Controlling of:
-electric installations
-processing sequences
-heating and air-conditioner
-weather stations
-wind power generators
-Facility management
-appartements, buildings
-alarm installations
-vending machines
-water supply/disposal installations
-and much more

Configuration

In the simplest case the programming of the DxGO can be done from a mobile phone. The use of the DxGO configuration software DxCONFIG on your PC offers a more elegant method. Over comfortable input masks all parameters can be entered and be transferred via a serial interface to the DxGO. Additionally the remote configuration is possible with a PABX- or radio-modem.



back to top


Technical Data


Data
Transmission		 by radio modem (M20,MC35, etc.) as GSM-, SMS- and GPRS-messages
Configuration
-  via cell phone: by SMS (plug and play)
-  via PC: with AT-commands, per email or configuration software (lokal/remote)
Display 2-line LCD-Display (16 chars/line)
for announcing all conditions of the device
Connections/
Signals
-  up to 12 digital inputs/counters (potential-free contacts)
- up to 4 relay outputs
- 4/8 analog inputs (optional)
- RS232 for radio- or PABX modem
-  RS232 for configuration
Safety End-to-End confirmation, password control from dedicated mobile, periodically message repetition (configurable)
Receiver cell phone, fax, email, PC, pager
Transmitter cell phone, PC, email
Software PLC function, data logger (optional)
Logging event protocol - local/remote recallable
Power
supply		 8-15V=, 200mA, (8..35V=/ 60V=/ Solar) incl. radio, integatet battery charging circuit message on power fail detection temp. 0..55°C
Dimensions L: 130mm, W: 110mm, H: 40mm
for wall or DIN-rail mounting

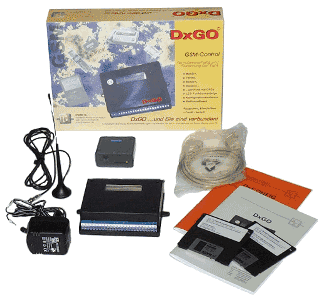

Scope of Delivery
Optional USB cable for connecting Dx-stations (RS232) to the serial USB-port of a laptop or a PC:

Communication Possibilities



Who can receive messages from DxGO:

Inform up to 72 receivers at the same time!


Who can send messages to DxGO:

Action release via mobile, PC or email.


DxGO - Crosslinking


Connect up to 32 DxGOs with DxBUS
back to top

DxGO-Ethernet

  • point-to-point or point-to-multipoint transmission between DxGO stations via internet or intranet
  • connection between the DxGO station and the DxGO control station software DxLEIT via internet or intranet


Seitenanfang

DxGO suitcase

Seitenanfang


More Informations

DxGO - Product Presentation (Demo)
DxGO - Delivery Circuit
DxGO Wizard - Screenshots
