Properties
Your advantages with DxGO GSM-Control:
- With immediately automatic messaging in case of disturbance, you can faster
react. You will get shorter machine stop times and minimise following defects.
- Every event-message can be send to different recipients at the same time
- Possibility to switch machines on and off by sending a SMS-Message to the
DxGO GSM-Control
- Short message Information for alerts, disturbance, etc. can reach your service
personal at any time, during travelling, at work, at the weekend; so you can
save a lot of time, driving-costs, destruction an last but not least a lot
of money.

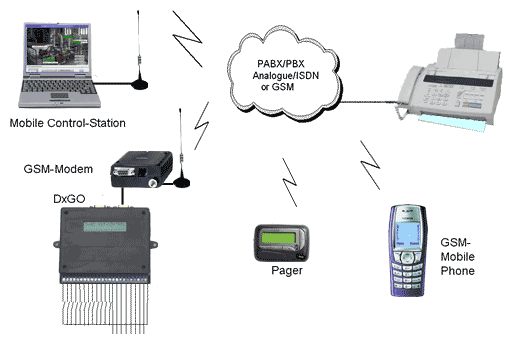

- The event-message will be send from the DxGO to GSM - mobile phones and
pager. Pager and GSM mobile phones are often already present, so there are
no more additional costs for receive and send messages and commands through
the service personal.
- Using FAX-Services to indicate, protocol and archivate special events by
paper-information as hardcopy of special occurrences.
- Periodic generated a-live-messages replace control-visits for function-supervision
through the service personal
|
| back to top |
| Ordernumber |
Description |
| DxGO |
inclusive following features:
- LCD-Display for permanent operation control
- 12 digital Inputs with optional counter Function
- 4 Relay-Outputs (1 Relay-Output can be configured as a local disturbance
output)
- Message transmission in GSM- and Pager-Networks via GSM-radiomodem
- Connector for accumulator to back-up DxGO during power-failure, with
integrated accumulator-recharge-circuit
- Configuration-Software for Windows 95/98/NT/2000
|
| DxGO-Box |
PnP Box with DxGO, M20T, Antenna, Power-Supply, Cable, Wizard-SW, Documentation |
|
| back to top |
| Ordernumber |
Description |
| DxGO-ANA4 |
4 analogue Inputs (0/4..20mA), only 2 Relay-Outputs left |
| DxGO-ANA8 |
8 analogue Inputs (0/4..20mA), only 1 Relay-Output left |
| DxGO-MBUS |
Interface for 32-250 MBUS-Counter for remote counter-reading |
| DxGO-LOGG |
Data-Logger-Function for Measurement-values and event-messages |
| DxGO-LowPower |
DxGO Powersupply for 8VDC-35VDC, typ. 100mA |
| DxGO-IrDA |
IrDA-Interface for wireless communication with PC, Printer, etc. |
|
| back to top |
| Ordernumber |
Description |
| DxGO-NET |
Plugin Power-Supply, 230V AC |
| DxGO-HUT |
profile-mounting holder for DxGO or GSM-Radiomoden (two pieces required) |
| DxGO-MODEM |
PABX/PBX-wiremodem |
| DxGO-M20 |
M20T-GSM-radiomodem |
| DxGO-ANT |
Antenna 3dB for GSM, with connector for GSM Radio-Modem |
| DxGO-KABEL |
DSUB9-cable for (Radio-)Modem or Programming interface |
| DxGO-9/25 |
Adapter DSUB9 (Male) to DSUB25 (Female) |
| DxGO-25/9 |
Adapter DSUB25 (Male) to DSUB9 (Female) |
| DxGO-PRINT |
Printer for direct connection to the DxGO, for local protocol printing
|
| DxGO-BAT-2/-12 |
Accumulator power backup for DxGO and Modem for >= 2h respectively >=
12h |
| DxGO-Gehäuse |
Kunststoffgehäuse, Komponenten fertig montiert, PG11-Vers., IP65,
(300x300x150 mm) |
| DxGO-RC |
Remote-Control-Software for remote configuration, statusrequest via PABX/PBX-wiremodem
at PC side (Data card in the GSM-Radiomodem required) |
| DxGO-MINI-FWLST |
Remote-Control-Software for statusrequest, transmit and receive commands
and messages via GSM-Radiomodem at PC-side |
| GSM-card |
D1 or D2 (german) GSM-Card for GSM-radiomodem |
|
| back to top |
| Additional Communications |
| Ordernumber |
Description |
| DxGO-E+ |
Message-transmission to GSM-1800-Mobile Phones (SMS) |
| DxGO-QUIX |
Message-transmission to Quix-Pager |
| DxGO-CITY |
Message-transmission to Cityruf-Pager |
|
| back to top |
