FAMO-Cityfax - Automatic Send-FAX and Pager-Call-Unit

FAMO - Cityfax
Automatic Send-FAX and Pager-Call-Unit


Features Automatic transmission of predefined FAX-pages and/or Pager-Messages for different receivers Message transmission by event activation Transmission of data telegrams to remote control stations 23 message inputs to connect potential-free contacts Automatic dial and dial repeat in case of busy line Phone number memory for alternative calling number Remote notification call, by triggering a relay contact Remote programming and configuration using the telephone network (option) FAX-journal as transmission protocol with phone numbers and time stamp Input status display and function display with LCD-Display RS232-interface for programming pager numbers and fax-pages Automatic time synchronization with radio-timebase (DCF77) Connectable with private and public ABX, private Lines and radio telephones German PTT-admission A105279D
back to top

Description

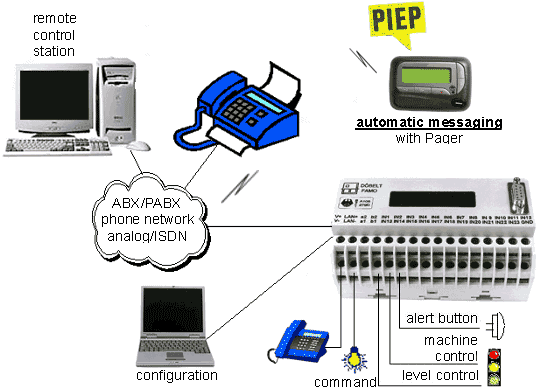

Using the event reporter HANDYFAX appearing events cause an automatic transmission of TELEFAX-messages and/or pager messages or data telegrams to a remote control station. The device works with private- and public- ABX. By triggering a message, caused by a status change on a device input, a predefined FAX-message with up to several 1000 characters, a pager- message or a data telegram will be automatically transmitted. Pager calls can be transmitted as a text, numeric or sound. So CITYFAX is able to register various events for several service providers and to report them to the receiver using a FAX-transmission or a pager call. For various events 23 message contacts are available, which are assigned with several FAX-texts, pager calls, or data telegrams. Message triggering will be initiated by actuating a closing or opening contact at the respective input slot. Per message, several pager and phone numbers for the destination of information transmission can be defined, so that a FAX- messages and/or a pager call can be sent to several receivers simultaneously. In case of a busy line a dial repeat takes place or an alternative telephone number will be dialed. The function mode and the state of each input slot is displayed on a LC- Display. The telephone connection is throughout, so a sequential wired telephone can always be used even if CITYFAX doesn´t transmit data.		Telephone numbers, pager numbers, pager messages and FAX-texts are configured by using a PC and a configuration software. Data is transmitted from PC to HANDYFAX over an RS232 interface. Programming is possible at any location. It is possible to program the CITYFAX via a direct connection or via a telephone by using the telephone network ( remote programming/ (option). Even at power failure all inputted data stay alive, because they are stored in non-volatile memory. As receiving station a simple FAX-receiver (group 3) or a pager is enough. For the connection to the ISDN-network we deliver a adapter box. Power supply voltage: 8V= ..15V=, 250mA Design module-case for EN-bar mounting; L: 140mm, W: 90mm, H: 60mm; 8 PLS; Application electric installations process-, pump station supervising heating-, air conditioning supervising environmental measure stations wind-power, etc.
