FAMO-HANDYFAX - Remote control station with fax and GSM SMS

FAMO - HANDYFAX
Remote control station with fax and GSM SMS


Features Transmission of up to 23 event-messages by TELEFAX (G3) via telephone-line or by Short Message Service (SMS) to GSM mobile radio phone networks Transmission on cellular phone networks without any use of phone lines is possible Automatic transmission of predefined FAX-pages and/or SMS-Messages to GSM mobile radio phone networks for different receivers Message transmission by event activation Transmission of data telegrams to remote control stations 23 message inputs to connect potential-free contacts Automatic dial and dial repeat in case of busy line Phone number memory for alternative calling number Remote notification call, by triggering a relay contact Remote programming and configuration using the telephone network (option) FAX-journal as transmission protocol with phone numbers and time stamp Input status display and function display with LCD-Display RS232-interface for programming phone numbers, message-texts and fax-pages Automatic time synchronization with radio-timebase (DCF77) Connectable with private and public ABX, private Lines and radio telephones German PTT-admission A105279D
back to top

Description

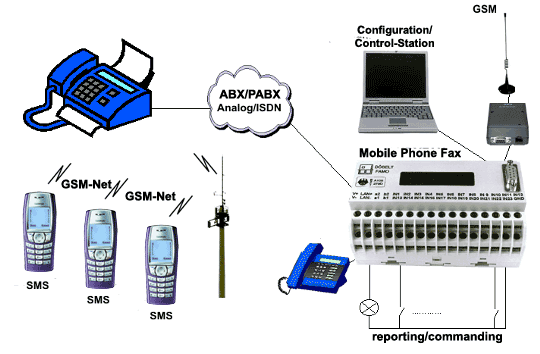

Using the event reporter HANDYFAX appearing events cause an automatic transmission of TELEFAX-messages and/or brief data telegrams to GSM cellular phones or data telegrams to a remote control station. The device is able to work without a wire phone net-work connection, by using a cellular phone with an interface for an analog phone. A mix of private/ public-ABX and radio connections is possible. By trig-gering a message, caused by a status change on a device input, a predefined FAX-message with up to several 1000 characters, a cellular phone SMS-mes-sage or a data telegram will be auto-matic-ally transmitted. Radio calls can be transmitted as a text, numeric or sound. So HANDYFAX is able to register various events for several service providers and to report them to the receiver using a FAX-transmission or a radio call. For various events 23 message contacts are available, which are assigned with several FAX-texts, radio calls, or data telegrams. Message triggering will be initiated by actuating a closing or opening contact at the respective input slot. Per message, several phone numbers for the destination of information transmission can be defined, so that a FAX-messages and/or a radio calls can be sent to several receivers simultan-eously. In case of a busy line a dial repeat takes place or an alternative telephone number will be dialed. The function-mode and the state of each input slot is displayed on a LC-Display. The telephone connection is throughout, so a sequential wired telephone can always be used even if HANDYFAX doesn´t transmit data.		Telephone numbers, SMS - cellular phone messages and FAX-texts are configured by using a PC and a configuration software. Data is transmitted from PC to HANDYFAX over an RS232 interface. Programming is possible at any location. It is possible to program the HANDYFAX via a direct connection or via a telephone by using the telephone network (remote programming/ (option). Even at power failure all inputted data stay alive, because they are stored in non-volatile memory. As receiving station a simple FAX- receiver (group 3) or a GSM-cellular phone with SMS-receiving option is enough. For the connection to the ISDN-network we deliver a adapter box. Power supply voltage: 8V=..24V=, 250mA Design module-case for EN-bar mounting, L: 140mm, W: 90mm, H: 60mm; 8 PLS Application electric installations process-, pump station supervising heating-, air conditioning supervising environmental measure stations wind-power, etc.
