FAMO - Event Reporter
remote supervision with phone, FAX and radio paging networks


FAMO variants: AUTOFAX, CITYFAX, HANDYFAX, MULTIFAX, VARIO (german)



Characteristics

  • transfer of up zo 23 events via FAX, pager, beep or SMS on cellular phone networks
  • 23 notification inputs for connecting dry contacts
  • automatic sending of predefined FAX pages and/or radio messages (SMS, pager) to different receivers at the event release
  • transmission of data telegram to telecontrol stations
  • automatic dialing and redialling at busy case
  • call number memory for alternative calls
  • remote confirmation with call via releasing of a relais contact
  • remote programming and - configuration via phone network (optional)
  • report file as transceiver journal for controlling to any call number
  • state display for the notification inputs and functions display with LCD
  • V.24-interface for entering call numbers, notifactions texts and FAX pages
  • automatic time synchronisation with PTB time normal (DCF77)
  • suitable for connecting exchange lines, extensional systems and mobile phones
  • BZT-approval A105279D




Description

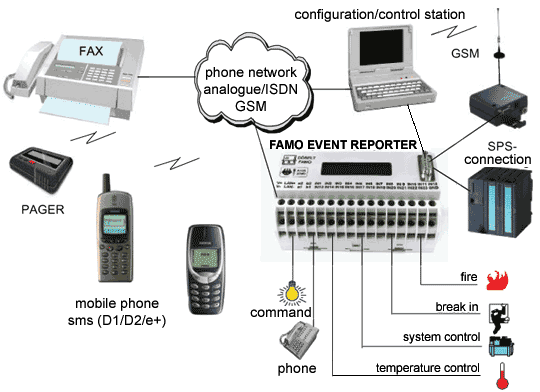

With the FAMO event reporters it's possible to send FAX texts, beep tones pager messages or sms to radio receicers, phones, FAX devices or data telegrams to a telecontrol station. The Device can be used with or without a fixed network connection, e.g. solely via GSM adapter. By causing a notification, provoked by a change of state at an input of the device, a predefined FAX text, a paging message or a data telegram will be automatically transmitted to one or several receiving stations. The pager calls can be transmitted as text, numerics or tone. 23 news-contacts, to which different FAX texts/beep tones/pager calls/data telegrams are assigned in each case, are available for different events.
For each notification eight phone numbers can be defined for the destination of the information transmission, so that e.g. a fax notification and a pager call can be transferred to several receivers at the same time. The operating state and the state of every input are shown in the LCD display.
The phone connection is looped in, so that no extra telephone extension is needed. The configuration of the device takes place with a configuration software via RS232 interface from a Windows PC. The programming can take place at an any place.
Also with a blackout, the inputed data stick gotten. As receiving station a simple FAX receiver (group 3) or a mobile phone is sufficient.

Technical Data

voltage: 8VDC-15VDC, 24VDC Option
dial operation: IWV and MFV
transmission: CCITT V.22, V.22bis, V27ter
call numbers: 128 numbers; 8 / input
dialing try: max. 12 pro call number
connections: 23 inputs, dry contact
phone extension: a1, b1 and a2, b2
relais output, switches with telephone call

Device Design

module box for EN-bar-installation, 8 PLS; L*B*H: 140*90*60mm3

Applications

electronic installations, process-, pumping stations monitoring, radiator-, climate monitoring, environment gaging station, etc.

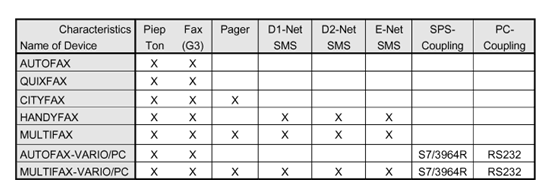

FAMO Variants:

FAMO Overview
AUTOFAX - The automatic Send-Fax-device with 23 inputs
CITYFAX - automatic Send-Fax - and pager device with 23 inputs
HANDYFAX - remote supervision with pager
MULTIFAX - event reporting as FAX, pager and SMS
VARIO - notification via FAX or radio at events (german)
